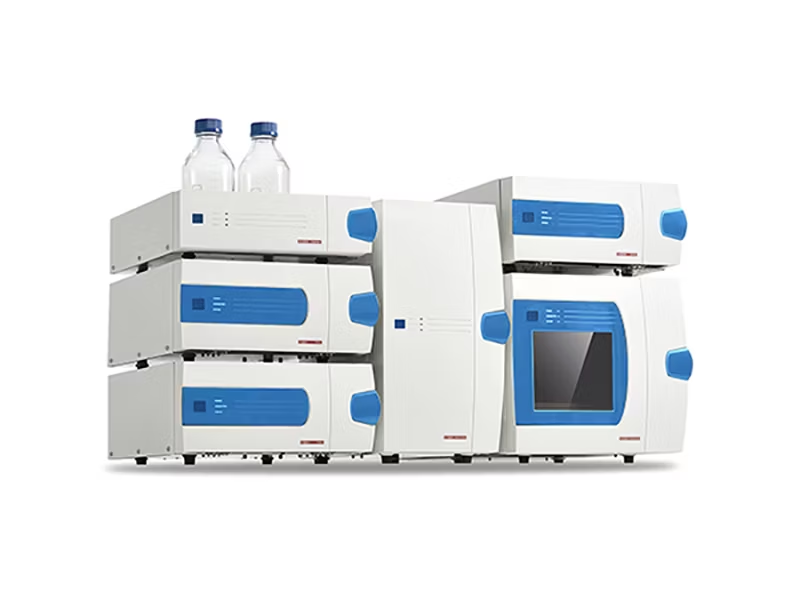

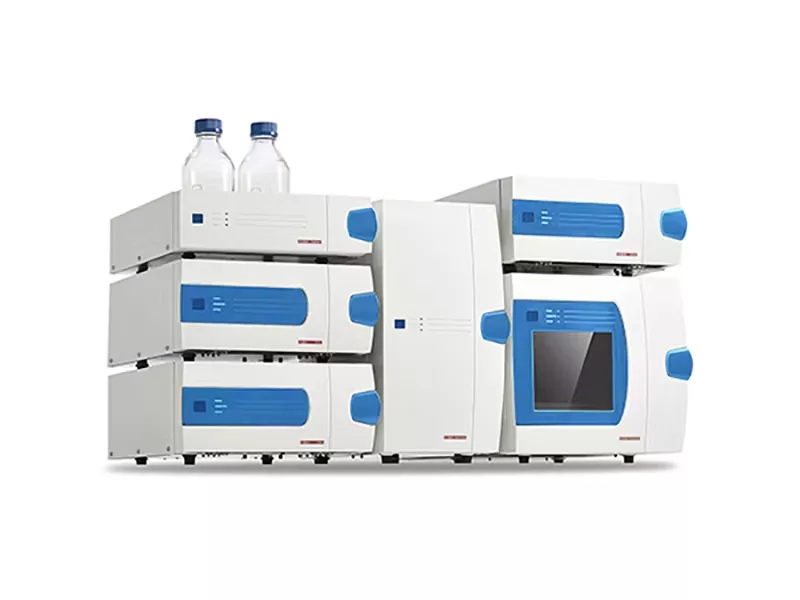

Components Of An HPLC System: A Complete Guide

Imagine a lab technician running a critical stability study for a new drug. The team has been working late nights, and the results are due for a regulatory submission the next morning. Everything depends on one HPLC run. Suddenly, the baseline starts drifting, peaks look distorted, and panic sets in.

After quick troubleshooting, the technician discovers tiny air bubbles in the pump and a clogged injector. A simple fix restores the system, and within hours, clear, sharp chromatograms appear, data that could decide the future of the drug. It shows how the reliability of each component of an HPLC system, from the solvent reservoir to the detector, can make the difference between failure and breakthrough.

High-Performance Liquid Chromatography (HPLC) is one of the most important analytical techniques used in pharmaceutical research, quality control, food testing, biotechnology, and environmental monitoring. Known for its accuracy, sensitivity, and reproducibility, HPLC has become an essential tool for separating, identifying, and quantifying compounds in complex mixtures.

While the principle of chromatography explains how separation happens, the real magic lies in the components of an HPLC system that work together to make it possible. In this article, we will walk through each major component, its function, and why it is critical for successful analysis. Let’s explore these components in detail and see why they matter so much.

1. Solvent Reservoir (Mobile Phase Container)

Every HPLC run starts with the mobile phase, the solvent that carries the sample through the system.  Even minor impurities in the mobile phase can cause noise or ghost peaks, so high-purity solvents are essential.

• Usually stored in glass or stainless-steel containers.
• Equipped with filters and degassing units to remove dissolved gases that could form bubbles and interfere with detection.
• The choice of mobile phase composition (water, organic solvents, buffers) directly influences separation, resolution, and retention times.

2. Pump – The Heart of HPLC

The pump ensures that the mobile phase flows through the system at high pressure (up to 6000 psi) and at a constant rate. A stable pump guarantees reproducibility; any fluctuation can distort peaks and compromise accuracy.

• Types of pumps:

1. Isocratic Pumps

• Function: Deliver a mobile phase of constant composition throughout the run.
• Applications: Suitable for simple separations where analytes differ significantly in polarity or chemical nature.
• Advantages: The operation is simple yet low-maintenance. Excellent reproducibility for routine quality control testing.
• Limitations: Isocratic pumps are not efficient for complex mixtures with analytes of varying polarities. Long retention times for late-eluting compounds.

2. Gradient Pumps

• Function: Change the composition of the mobile phase during the separation by mixing two or more solvents.
• Applications: Ideal for complex samples with wide polarity ranges.
• Advantages: Gradient pumps aid in reducing run times by eluting strongly retained analytes faster. Also provides better separation efficiency for pharmaceutical formulations and natural extracts, and improves peak shape and resolution.
• Limitations: More complex system requiring regular calibration. Potential baseline drift if solvents are not properly degassed.

3. Reciprocating Pumps (Most Common Design)

Work by alternating piston strokes, creating high pressure and continuous solvent flow. Found in both isocratic and gradient systems. Known for durability and precise control of flow rates (0.1–10 mL/min).

4. Syringe Pumps

Uses a motor-driven syringe to precisely deliver the mobile phase in constant flow. Provide extremely smooth and pulse-free flow. Mostly used in capillary or micro-HPLC, where flow rates are very low.

3. Injector (Sample Introduction System)

The injector introduces the sample into the flowing mobile phase. Automation in injectors allows high-throughput analysis and reduces human error, which is vital in pharmaceutical quality control labs.

• Can be manual (loop injector) or automated (autosampler).
• Injection volume typically ranges from 1 to 100 μL.
• Designed to ensure precise delivery without disrupting flow or pressure.

4. Column – The Separation Engine

The column is the core of the HPLC system, where actual separation of analytes occurs. The HPLC column is often called the separation engine because it performs the critical task of resolving complex mixtures into individual components.

It is typically packed with stationary phase particles, such as silica, modified with functional groups like C18 in reverse-phase HPLC. The column’s length, internal diameter, and particle size directly affect separation efficiency, resolution, and analysis time. Different types of columns, reverse-phase, normal-phase, ion-exchange, and size-exclusion, are chosen depending on analyte chemistry and application.

Since the column is exposed to repeated pressure and diverse solvents, proper care, regular flushing, and avoiding contamination are essential to ensure consistent, reliable chromatographic performance. Maintaining column health is critical; contamination or degradation directly impacts performance.

5. Detector – The Eyes of HPLC

Once separated, analytes pass through a detector that measures their presence. The detector converts the analyte signal into a chromatogram, a graphical output showing peaks that correspond to different compounds. The choice of detector depends on analyte properties, required sensitivity, and application.

Common detectors include:

1. UV-Visible absorbance - The UV-Visible absorbance detector is the most commonly used type in HPLC. It measures how much light at specific wavelengths is absorbed by compounds as they pass through a flow cell.
2. Since many pharmaceutical molecules and organic compounds absorb UV light, this detector is considered the workhorse of routine quality control. It is sensitive, cost-effective, and stable, but it cannot detect compounds that lack UV-absorbing chromophores.
3. Fluorescence- For even and highly sensitive detection, the fluorescence detector is used. This detector excites molecules with one wavelength of light and measures the light they emit at another wavelength. Because of this mechanism, it can detect compounds present at extremely low concentrations, often hundreds of times more sensitively than UV detection. However, its limitation is that only naturally fluorescent molecules, or those chemically modified to fluoresce, can be analysed this way
4. Refractive Index - Another option is the refractive index (RI) detector, which detects changes in the refractive index of the mobile phase when analytes pass through. Unlike UV or fluorescence detectors, RI does not depend on the presence of chromophores, making it suitable for compounds lacking chromophores like sugars, lipids, or polymers. While it is versatile, it is less sensitive and highly influenced by temperature and flow fluctuations, which restricts its use in gradient elution methods.
5. Mass Spectrometry - Finally, the mass spectrometry (MS) detector, commonly used in LC-MS systems, provides the most detailed information. It ionises analytes and measures their mass-to-charge ratio, giving both quantitative and structural data.
6. This makes it invaluable in drug discovery, proteomics, metabolomics, and forensic science. Its high sensitivity and specificity make it unmatched in capability, though the complexity, high cost, and need for expertise limit its use to advanced research and regulated laboratories.

6. Data System (Chromatography Software)

Modern HPLC systems are incomplete without data acquisition software. In regulated environments like pharmaceuticals, the data system plays as big a role as the physical components in ensuring accuracy and traceability.

• Controls instrument parameters.
• Records chromatograms in real time.
• Integrates peaks for qualitative and quantitative analysis.
• Ensures compliance with regulatory standards (21 CFR Part 11, GMP, GLP).

7. Waste Management & Fraction Collector

After detection, solvents and analytes exit the system:

• Most analyses send the effluent to a waste container, which must be handled safely due to chemical hazards.
• In preparative HPLC or purification processes, a fraction collector is used to collect separated compounds for further use.

HPLC Workflow in a Nutshell

The workflow of an HPLC system follows a precise sequence where each component plays an essential role. This seamless workflow ensures accuracy, reproducibility, and efficiency in chromatographic analysis, and any malfunction can affect overall performance.

1. It begins with the solvent reservoir, which holds the mobile phase, pure, degassed solvents that transport the sample.
2. The pump then delivers this solvent at high pressure and consistent flow, ensuring stable conditions for separation.
3. The injector introduces the sample into the flowing mobile phase without disturbing pressure or flow.
4. Once inside the column, compounds interact with the stationary phase, leading to separation based on polarity, size, or charge.
5. The eluted analytes then pass through the detector, which converts their signals into measurable responses, typically a chromatogram.
6. The data system captures, processes, and interprets this information for qualitative and quantitative analysis.
7. Finally, the effluent exits into a waste container or a fraction collector when purified compounds are required.

Here’s the typical flow of an HPLC system:

Solvent Reservoir → Pump → Injector → Column → Detector → Data System → Waste/Fraction Collector

Final Thoughts

The efficiency and reliability of HPLC are not defined solely by the principles of chromatography but by the seamless interaction of its components. From the solvent reservoir that delivers a clean mobile phase to the pump that ensures consistent flow, from the injector that introduces precise sample volumes to the column where separation occurs, and finally to the detector and data system that translate results into actionable insights, each element plays an indispensable role.

For scientists, students, and industry professionals, understanding these components is more than technical knowledge; it is the foundation for successful method development, effective troubleshooting, routine system maintenance, and compliance with regulatory standards. A well-maintained and properly understood HPLC system not only ensures reproducible results but also drives confidence in every analysis, making it one of the most powerful tools in modern science.

FAQs

1. What are the main components of an HPLC system?

The core components include the solvent reservoir, pump, injector, column, detector, data system, and waste or fraction collector. Each plays a specific role in ensuring accurate separation and detection of compounds.

2. Why is the pump called the heart of an HPLC system?

The pump maintains constant, high-pressure solvent flow (up to 6000 psi) through the column. Stable flow ensures reproducibility and accuracy, which is why it’s considered the “heart” of HPLC.

3. How does the HPLC column separate compounds?

The column contains a stationary phase, often silica particles, that interacts with analytes differently based on their polarity, size, or charge. This selective interaction causes compounds to elute at different times, creating distinct chromatographic peaks.

4. Which detectors are most commonly used in HPLC?

UV-Visible detectors are the most widely used because many compounds absorb UV light. Other detectors include fluorescence (high sensitivity), refractive index (for non-UV absorbing compounds), and mass spectrometry (for detailed structural analysis).

5. How do you maintain and troubleshoot an HPLC system?

Proper maintenance includes using high-purity solvents, degassing mobile phases, regularly flushing the column, and calibrating pumps and detectors. Common troubleshooting issues include baseline drift, peak distortion, and pump air bubbles, which can often be fixed with cleaning and system checks.
